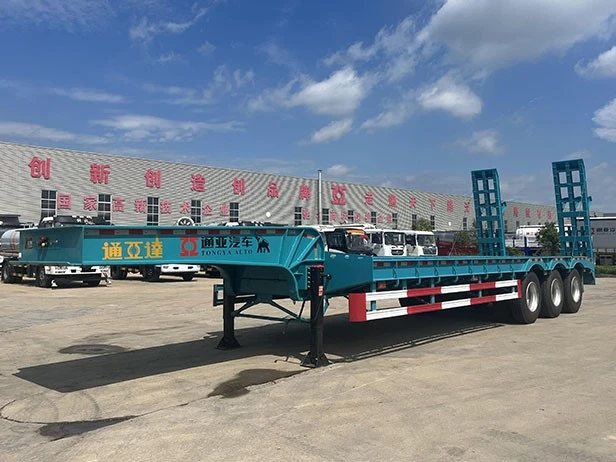

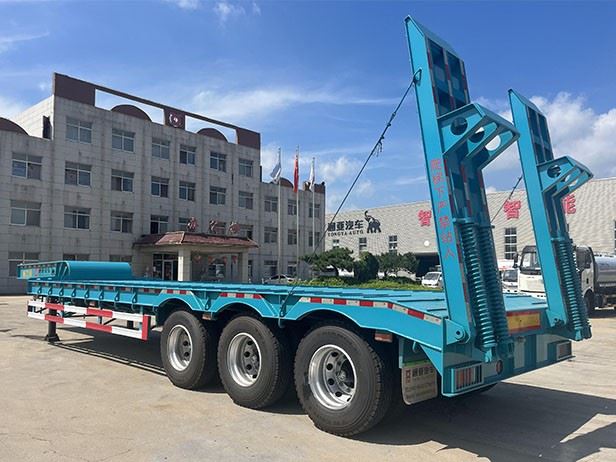

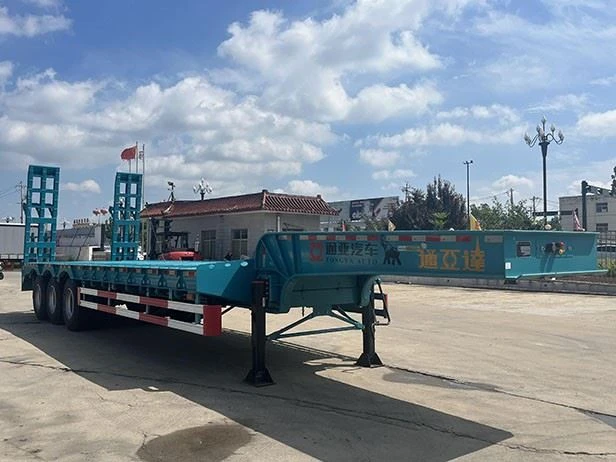

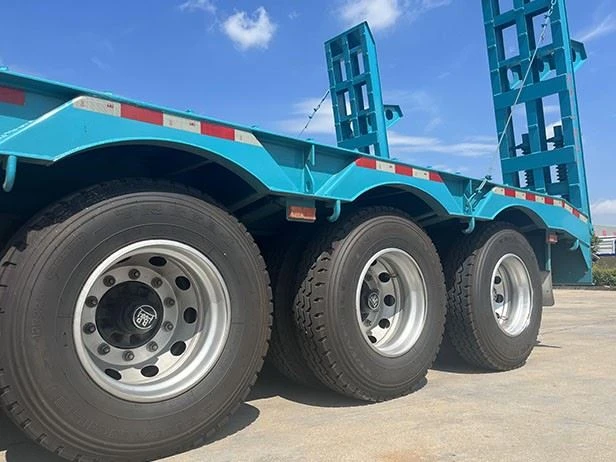

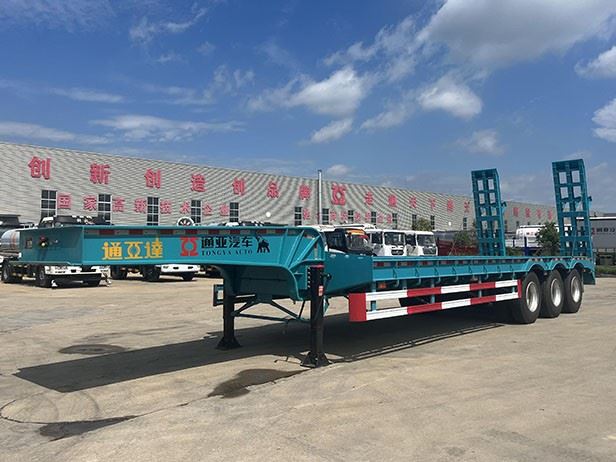

3 Axle Low Bed Semi Trialer With Ladder
3 Axle Low Bed Semi Trialer with Ladder is an very popular model in the low bed trailers that we sold to our oversea customers !In consideration of our customers are from different countries, and their government have different road safety rules and regulations, so the specifications of our 60tons low bed trailer is different too, as an manufacturer, we can design the trailers according to the different requirements.
Produkt introduktion
3 Axle Low Bed Semi Trialer Advantages:
1, 60T loading capacity, customization is acceptable for style ,loading capacity and size so on
2, China leading manufacturer since 1982
3, Shipping via RO-RO or bulk ship
| 12T | ||
| 60 T | ||
| 72 T | ||
| 13000*3000*3180 mm (The final dimensions depend on the final design drawings) | ||
| Heavy duty and extra durability designed;welding by automatic Submerged-Arc processes. | ||
| Opting for high strength Q345B steel, 520mm deep welded I-section main beams Top Flange thickness 20mm, width 140mm; Bottom Flange thickness 25mm, width 140mm.Middle Flange thickness 12mm; | ||
| 250mm high I beam | ||
| 5 mm thickness chequer plate | ||
| Two pieces spring steel ladder, (Q345B steel) | ||
| 3 *13T capacity, FUWA brand (Chinese best brand) | ||
| 2.00''/3.5'' bolting king pin, JOST brand | ||
| Heavy duty undermount suspension with equalizers, American design (high-strength type) | ||
| 10pcs leaf spring, 13mm thickness, 90mm width | ||
| 315/80R22.5., Triangle brand (Chinese famous brand) | ||
| 9.0-22.5(Chinese famous brand) | ||
| 13 pieces(including one spare wheel) | ||
| WABCO relay valve; Four double and two single brake chamber; Two units of ISO standard coppery air-connector. | ||
| Without(Can be choose freely,450 USD/set) | ||
| One unit of 24V 7-pin ISO 1185 socket; LED lights | ||
| One piece (1. 0*0. 5*0. 5m), under the goose neck(with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar) | ||

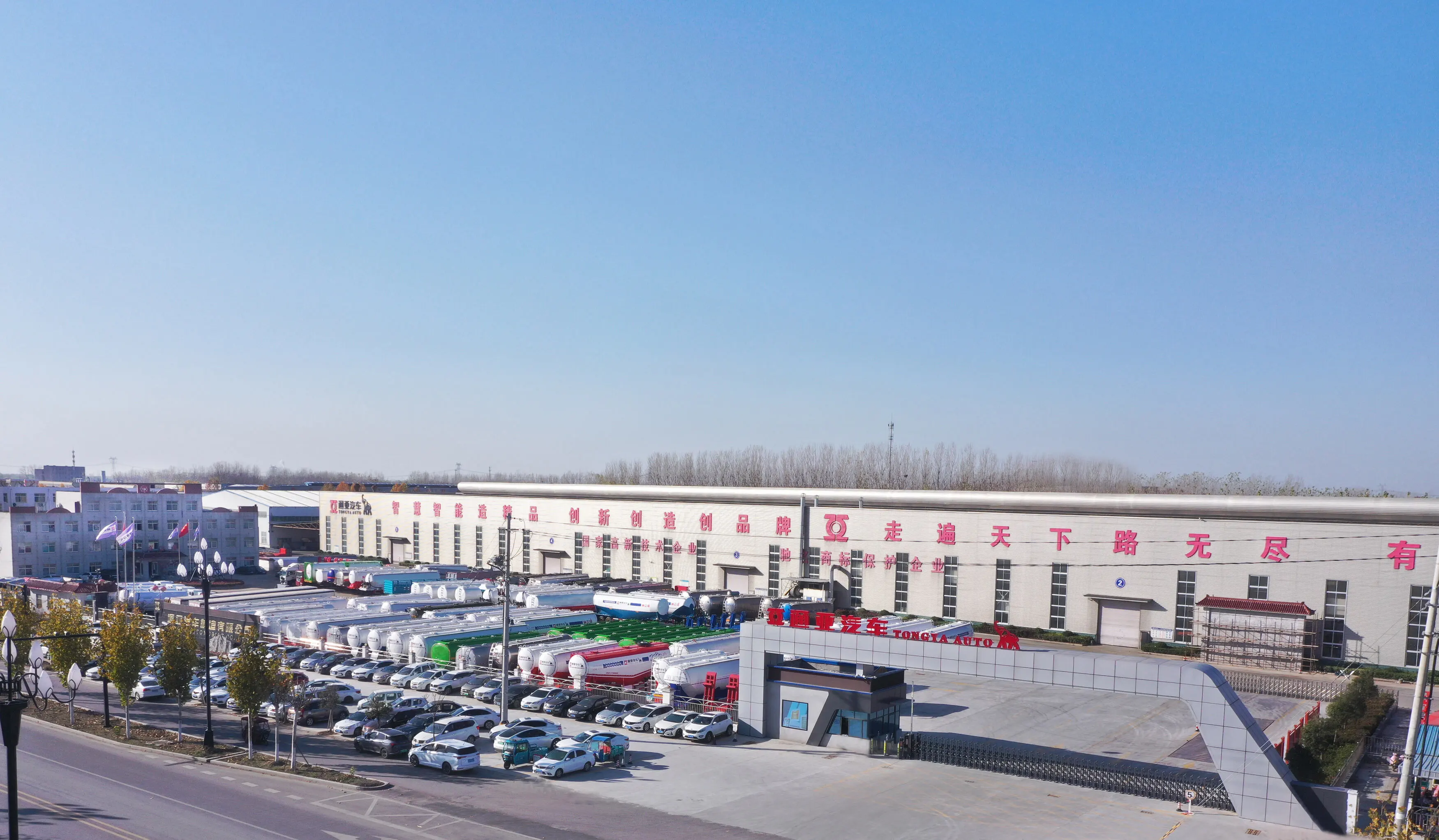

TONGYA AUTOMOBILE CO.,LTD is China leading semi trailer and tanker trailer manufacturer since 1982 ! Engaged design,manufacturing and sales of semi trailer and spare parts together.
Our product export to more than 40 countries, such as Russia, East South Asia, Australia, South America, Africa, Central Asia and South Aisa .Each year we export common semi trailer more than 5000 units, tanker semi trailer 3500units.
